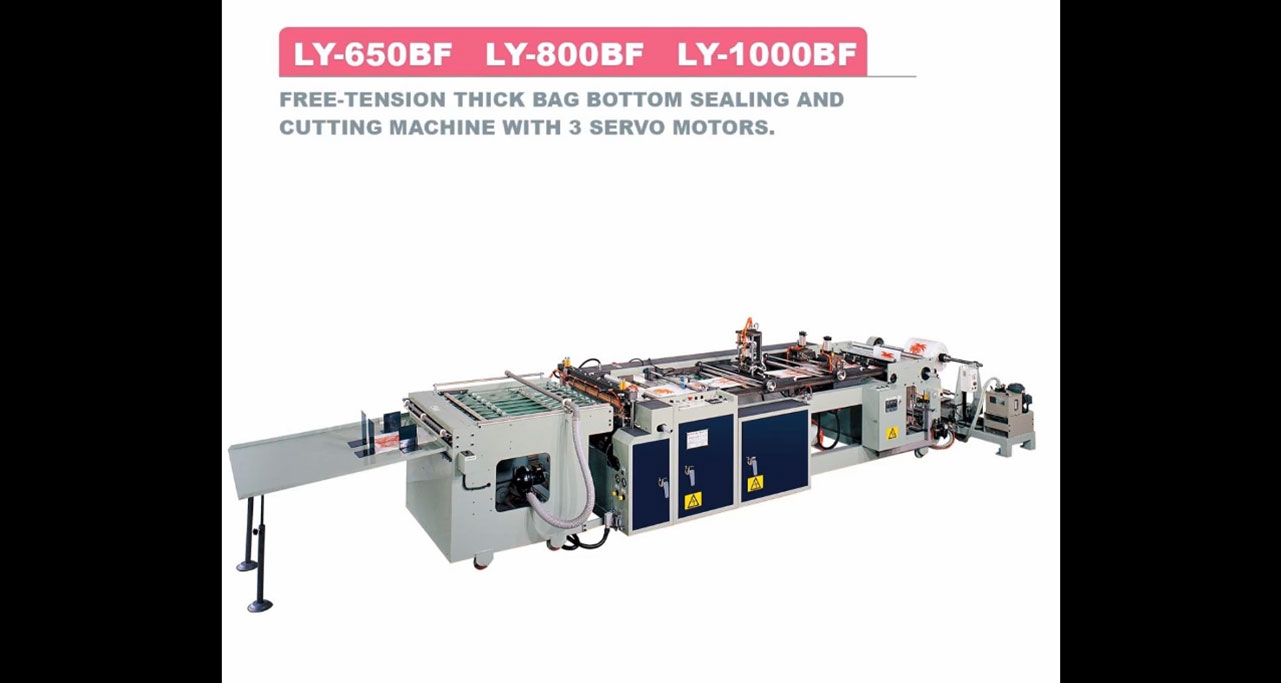

Free-tension Thick Bag Bottom Sealing And Cutting Machine With 3 Servo Motors
Introduction
-
ModelLY-650BF/LY-800BF/LY-1000BF/LY-1250BF/LY-1600BF
LY-650BF/800BF/1000BF series are free-tension heavy duty bag making machine, its 3-sets servo control system allowing customer to make very thick bag with good quality of sealing. All series have HMI system for easy operation.
Features
- Free-tension, heavy -duty bottom sealing bag making machine.
- Servo-driven feeding system with one set of photocell for printed bag.
- Servo-driven flying knife system for cutting.
- Servo-driven sealing bar for good quality of sealing.
- Human-machine interface for easy setting.
SPECIFICATION
| Model | LY-650BF | LY-800BF | LY-1000BF | LY-1250BF | LY-1600BF | ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Bag Length | 1500mm | 1500mm | 1500mm | 1500mm | 1600mm | ||||||||||
| Bag Width | 650mm | 800mm | 1000mm | 1250mm | 1200mm | ||||||||||
| Production Speed Cycles / Min | UP TO 60 | UP TO 60 | UP TO 60 | UP TO 50 | UP TO 40 | ||||||||||
| Thickness / 1 Sheet | 0.04-0.18mm | 0.04-0.18mm | 0.04-0.18mm | 0.04-0.18mm | 0.04-0.18mm | ||||||||||
| Heaters | 2.6KW x 2 | 2.6KW x 2 | 3KW x 2 | 3.5KW x 2 | 3.5KW x 2 | ||||||||||
| Power Required | 10KW | 10KW | 10KW | 10KW | 17KW | ||||||||||
| Machine dimensions | L | W | H | L | W | H | L | W | H | L | W | H | L | W | H |
| 5.5M | 1.4M | 1.4M | 5.5M | 1.5M | 1.4M | 5.5M | 2M | 1.4M | 5.5M | 2.25M | 1.4M | 5.5M | 2.4M | 1.4M | |
| Machine Weight | 1500 Kg | 1800 Kg | 2100 Kg | 2400 Kg | 2700 Kg | ||||||||||
| Air compressor (Not included) | 5Hp | 5Hp | 5Hp | 5Hp | 5Hp | ||||||||||
Notes：due to continual research and improvement, mechanical specifications are subject to further revision without prior notice.
Why Choose Free-tension Thick Bag Bottom Sealing And Cutting Machine With 3 Servo Motors?
This free-tension heavy-duty bottom sealing bag making machine is equipped with a 3-set servo control system, designed for producing thick bags with high-quality sealing. Ideal for high-quality heavy-duty bag production, it features an easy-to-use human-machine interface for simple setup, meeting various high-intensity production needs.
